Engine compartmentMaintenance / Engine compartment

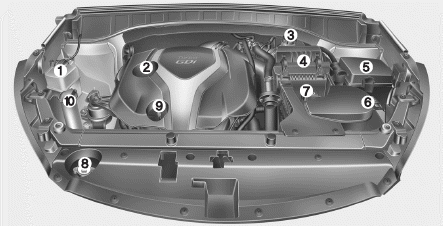

Gasoline Engine (Theta II 2.4L) - GDI

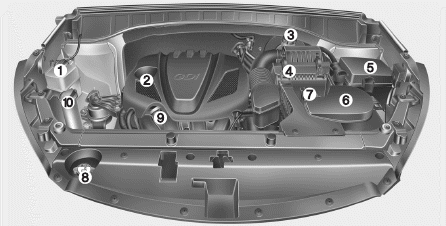

Gasoline Engine (Theta II 2.0L) - T-GDI
❈ The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
