Instrument cluster
Features of your vehicle / Instrument cluster

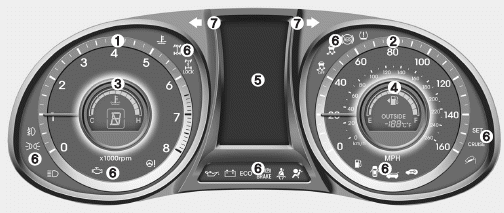

Hyundai Santa Fe: Instrument cluster. Type A

Type A

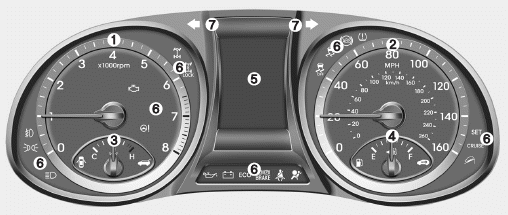

Hyundai Santa Fe: Instrument cluster. Type B

Type B

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6.Warning and indicator lights (if equipped)
7. Turn signal indicator lights

❈ The actual cluster in the vehicle may differ from the illustration. For more details, refer to the "Gauges" in this chapter.
