Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement
Maintenance / Light bulbs / Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement

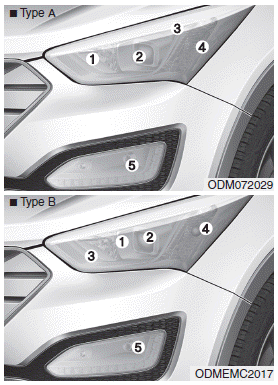

Hyundai Santa Fe: Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement. (1) Headlamp (High)

(1) Headlamp (High)
(2) Headlamp (Low)
(3) Front position lamp
(4) Front turn signal lamp/Front side marker
(5) Front fog lamp (if equipped)

Headlamp bulb

Hyundai Santa Fe: Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement. WARNING - Halogen bulbs

WARNING - Halogen bulbs

  • Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.
  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit. A bulb should be operated only when installed in a headlamp.
  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

Hyundai Santa Fe: Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement. 1. Open the hood.

1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
5. Remove the bulb by pulling it out.
6. Inset a new bulb by inserting it into the socket.
7. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
8. Install the headlamp bulb cover by turning it clockwise.

✽ NOTICE

If the headlamp aiming adjustment is necessary after the headlamp assembly is reinstalled, consult an authorized HYUNDAI dealer.

Hyundai Santa Fe: Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement. Turn signal lamp/Position lamp

Turn signal lamp/Position lamp

1. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
2. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket
3. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
4. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

Front fog lamp bulbs

Hyundai Santa Fe: Headlamp, Front position lamp, Front turn signal lamp, Front fog lamp bulb replacement. If the lamp bulb does not operate, have the vehicle checked by an authorized

If the lamp bulb does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Headlamp (HID type), position (LED), turn signal, and front fog lamp bulb replacement

If the lamp bulb does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

WARNING - HID Headlamp low beam

Do not attempt to replace or inspect the low beam (XENON bulb) due to electric shock danger. If the low beam (XENON bulb) is not working, have your vehicle checked by an authorized HYUNDAI Dealer.

✽ NOTICE

HID lamps have superior performance vs. halogen bulbs. HID lamps are estimated by the manufacturer to last twice as long or longer than halogen bulbs depending on their frequency of use. They will probably require replacement at some point in the life of the vehicle. Cycling the headlamps on and off more than typical use will shorten HID lamps life. HID lamps do not fail in the same manner as halogen incandescent lamps. If a headlamp goes out after a period of operation but will immediately relight when the headlamp switch is cycled it is likely the HID lamp needs to be replaced. HID lighting components are more complex than conventional halogen bulbs thus have higher replacement cost.
