Engine compartment
Maintenance / Engine compartment

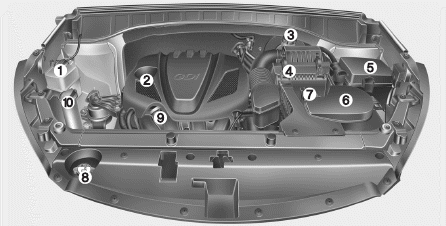

Gasoline Engine (Theta II 2.4L) - GDI

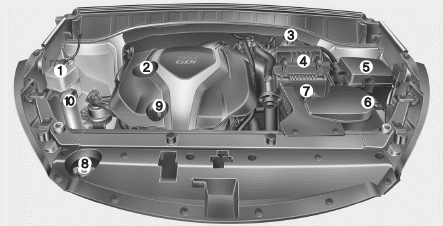

Hyundai Santa Fe: Engine compartment. Gasoline Engine (Theta II 2.0L) - T-GDI

Gasoline Engine (Theta II 2.0L) - T-GDI

Hyundai Santa Fe: Engine compartment. ❈ The actual engine room in the vehicle may differ from the illustration.

❈ The actual engine room in the vehicle may differ from the illustration.

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
