Hyundai Santa Fe Owners Manual

If you do decide to pull a trailer
Driving your vehicle / Trailer towing / If you do decide to pull a trailer

Here are some important points if you decide to pull a trailer:

  • Consider using a sway control.You can ask a hitch dealer about sway control.
  • Do not do any towing with your car during its first 1,200 miles (2,000 km) in order to allow the engine to properly break in. Failure to heed this caution may result in serious engine or transaxle damage.
  • When towing a trailer, be sure to consult an authorized HYUNDAI dealer for further information on additional requirements such as a towing kit, etc.
  • Always drive your vehicle at a moderate speed (less than 60 mph (100 km/h)).
  • On a long uphill grade, do not exceed 45 mph (70 km/h) or the posted towing speed limit, whichever is lower.

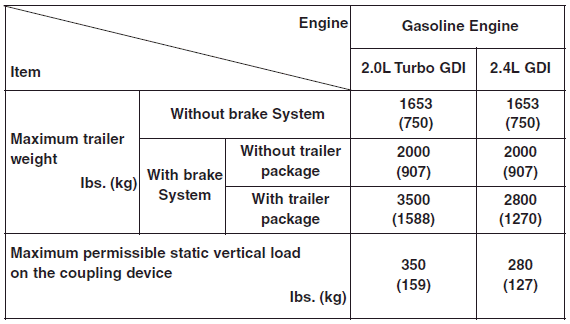

  • The chart contains important considerations that have to do with weight:

Hyundai Santa Fe: If you do decide to pull a trailer. Weight of the trailer

Weight of the trailer

Hyundai Santa Fe: If you do decide to pull a trailer. What is the maximum safe weight of a trailer? It should never weigh more than

What is the maximum safe weight of a trailer? It should never weigh more than the maximum trailer weight with trailer brakes. But even that can be too heavy.

It depends on how you plan to use your trailer. For example, speed, altitude, road grades, outside temperature and how often your vehicle is used to pull a trailer are all important. The ideal trailer weight can also depend on any special equipment that you have on your vehicle.

Weight of the trailer tongue

Hyundai Santa Fe: If you do decide to pull a trailer. The tongue load of any trailer is an important weight to measure because it affects

The tongue load of any trailer is an important weight to measure because it affects the total gross vehicle weight (GVW) of your vehicle. This weight includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle. And if you will tow a trailer, you must add the tongue load to the GVW because your vehicle will also be carrying that weight.

The trailer tongue should weigh a maximum of 10% of the total loaded trailer weight, within the limits of the maximum permissible trailer tongue load. After you've loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper. If they aren’t, you may be able to correct them simply by moving some items around in the trailer.

WARNING - Trailer

  • Never load a trailer with more weight in the rear than in the front. The front should be loaded with approximately 60% of the total trailer load; the rear should be loaded with approximately 40% of the total trailer load.
  • Never exceed the maximum weight limits of the trailer or trailer towing equipment. Improper loading can result in damage to your vehicle and/or personal injury. Check weights and loading at a commercial scale or highway patrol office equipped with scales.
  • An improperly loaded trailer can cause loss of vehicle control.
