Engine compartment
Your vehicle at a glance / Engine compartment

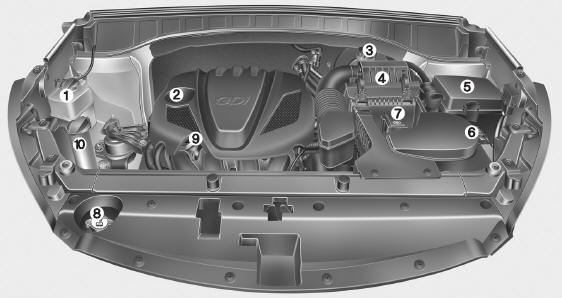

Hyundai Santa Fe: Engine compartment. Gasoline 2.4L GDI

Gasoline 2.4L GDI

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir

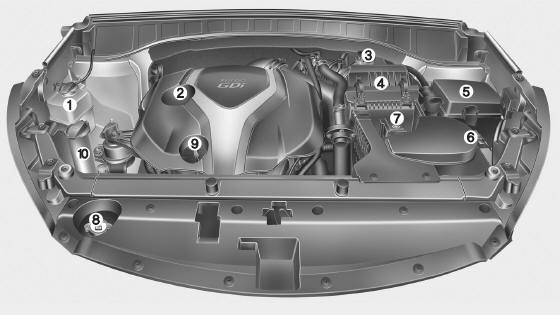

Hyundai Santa Fe: Engine compartment. Gasoline 2.0L TURBO GDI

Gasoline 2.0L TURBO GDI

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
